Twin Tube Short Wave Infrared Heaters

Ace Heat - Twin Tube Short Wave Infrared Module

This is made up of 8-shape high-purity clear quartz twin tube, each tube has Heating Coil of Tungsten material which runs in U shape in the tube which is filled with halogen gas.

  • Power Density up to 150KW/m2 is achieved. Heating up and cooling down time is approximately one second
  • These heaters are available with gold reflector and without reflector
  • Reflector is in the form of gold coating on outer rear side of the tube
  • Due to reflector heat loss from backside is prevented and thus power saving is achieved
  • This also results in making surrounding work area cooler
  • This also increases the efficiency and directionality of the heater
  • There are two standard sizes 11 mm x 23 mm and 15 mm x 32 mm in cross section. Maximum length available is 2000 mm

Ace Heat - Twin Tube Short Wave Infrared Module

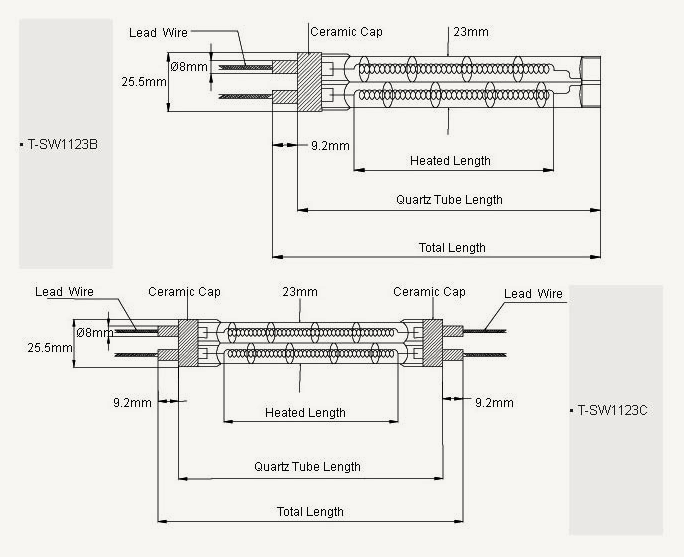

Twin Tube Short Wave IR Emitters (T-SW)

  • Color temperature 2400~2500 °K
  • IR wavelength between 1 to 2μ
  • Using tungsten wire as filament
  • Response time around 1~2 seconds
  • Average working life 5000 hours
  • Gold or ceramic coating at rear side as reflectors
  • Dimensions 11x23mm
  • Max. overall length up to 3M
  • Vertical and horizontal emitters are available

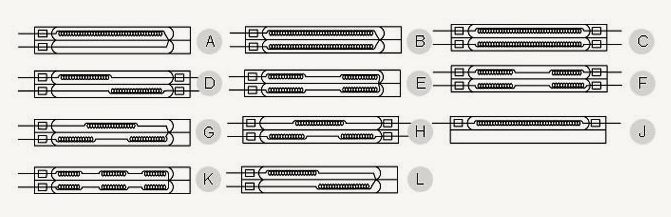

Various Design Of Filament
