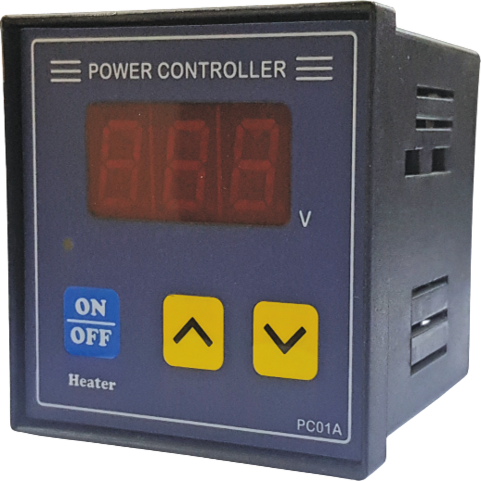

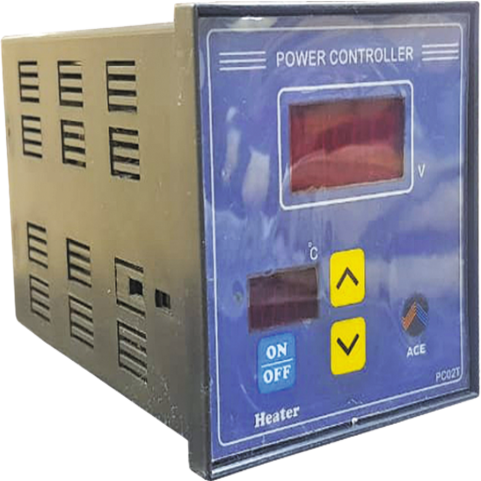

We offer a uniquely designed Digital Power Controller, power controlling device that is configured with imported solid state current control cascade unit, which is powered by single phase supply.
Features - Compact design, suitable for control panel flush mounting with panel, having a cutout size of 90mm x 90mm.
- Supply voltage indication feature.
- Input : 220 +/- 10% volts,1?,50 Hz.
- Output : 16Amps,25 Amps or 40 Amps rated output, with required connected load of equipment arranged in series.
- Output Terminal : for Phase/Neutral and two terminals for Series Load to be connected, which can be heaters & equipment.
- Adequate capacity heat sink is provided.
- Configured with imported solid state current control cascade unit.
- Precise & smooth % of supply voltage adjustment.
- Configured with digital read-out indication for % supply of voltage.
|
Applications - Compact design having 96mm x 96mm x 110mm standard casing
- Smooth & attractive surface finish for flush mounting, which enables lucrative yet manageable control device.
|
