Elstein IOT Screw Heaters

IOT Series

Ace Heat - Ceramic Flat Infrared Heaters )

Elstein IOT/75 and IOT/90 heaters are ceramic infrared dark heaters with E27 screw caps.

The standardised E27 thread allows easy and safe installation, as the heaters can be screwed in like bulbs into porcelain or metal sockets with porcelain insert.

Due to their simple connection, IOT/75 and IOT/90 infrared heaters are suitable both for individual operation and for configuring groups of heaters. They have diverse applications, in particular they range over terrariums/pets and livestock, breeding, medical and catering technology.

The power can be adjusted using a proprietary dimmer.

Elstein IOT/75 and IOT/90 heaters are available in two power levels of 60 W and 100 W or rather 150 W and 250 W.

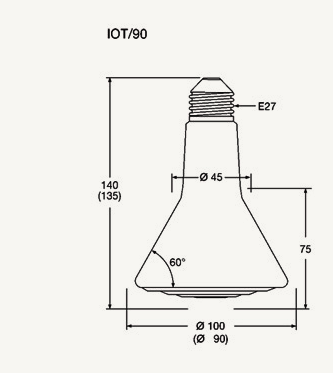

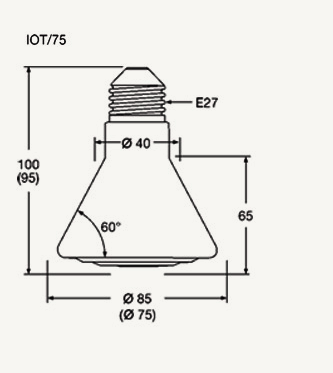

Dimensions :

Technical Details :

Type // Weight g // Wattage W IOT/75 85 60 100 - -
IOT/90 140 - - 150 250
Surface rating kW/m² 8,6 14,4 15,0 25,0
Typical operating temperature °C 290 380 420 490
 Maximum permissible temperature °C 530 530 530 530
 Wavelength range µm 2 - 10

Further Information :

Standard Design Thermocouple Heater Variants
Betriebsspannung 230 V options for power adjustment are mentioned below special wattages
ceramic hollow casting description T-IRS/K + length specification mm special voltages
screw cap E27

Consideration :

The power can be adjusted by using proprietary power controllers or dimmers, as a conventional light bulb.

Porcelain sockets or metal sockets with porcelain inserts are to be used both for electrical and mechanical connection. The sockets must not contain any plastic components.

The national safety regulations must be complied with for the respective application, for example, the IEC or EN standard 60519-1, Safety in electrical heating installations.

Further information and safety instructions are mentioned in the mounting sheet, which is attached to each heater.
